Black Cord

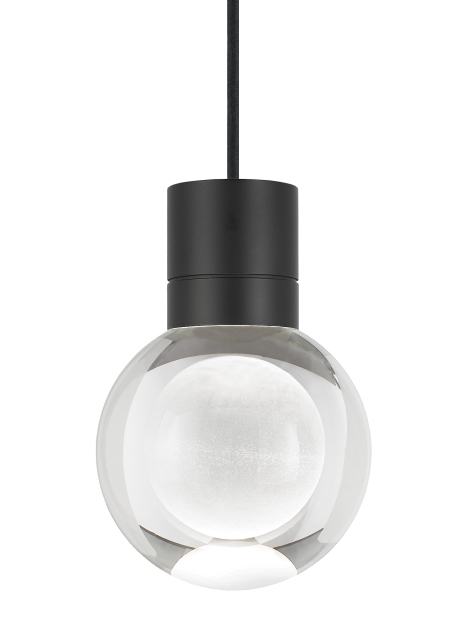

Mina Pendant
Product Features
- From the brand formerly known as Tech Lighting
- Laser etched pure optic crystal
- Highly customizable featuring multiple cord colors and on-trend finishes
- Complementary Alva and SoCo pendants also available from Tech Lighting
- Fully dimmable LED lamping options to create the desired ambiance
- High quality, long-lasting integrated LED lamping included to save you time and money
Lamping
Includes 9 watt, 118 delivered lumen, 3000K, 2200K or 3000K-2200K warm-color dimming LED module. Dimmable with most LED compatible ELV or triac dimmers. Fixture provided with twelve feet of field-cuttable cloth cord.
Black Cord
Black & White Cord
Black/White Cord
Black/White Cord
Black Cord
To view all available finish options, please visit techlighting.com
Ordering Information
| 700 | System MINAP | Shape or Size | Color | Cord Color | Finish | Lamp | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
700
Job Name
Notes
MINAP
Mina Pendant
Specifications
| Primary Material | Aluminum or Brass |
| Shade Material | Glass |
| Net Weight | 6.5 lbs |
| Height | 7.6in |
| Width | 5in |
| Length | 5in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 14in |
| Max Hanging height | 152in |
| Total Cord Length | 144in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 826 |
Clear : 118 Clear : 354 |
||
| Watts | 9 | 9 | ||
| Max Wattage Per Bulb | 63W | 9W | ||
| Input Voltage/ Dimming Type | 120V ELV, TRIAC | 120V ELV, TRIAC | ||
| CCT |
Clear : 2700K Clear : 3000K Clear : 3000K-2200K |
Clear : 2700K Clear : 3000K Clear : 3000K-2200K |
||
| CRI | 90 CRI | 90 CRI | ||
| LED Lifetime | ||||
| L70 | >50,000 | >50,000 | ||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | Integrated LED | ||
| Lamp Shape | Integrated LED | Integrated LED | ||
| Lamp Included? | True | True | ||
| Warranty** | 5 Years | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
