Black Finish

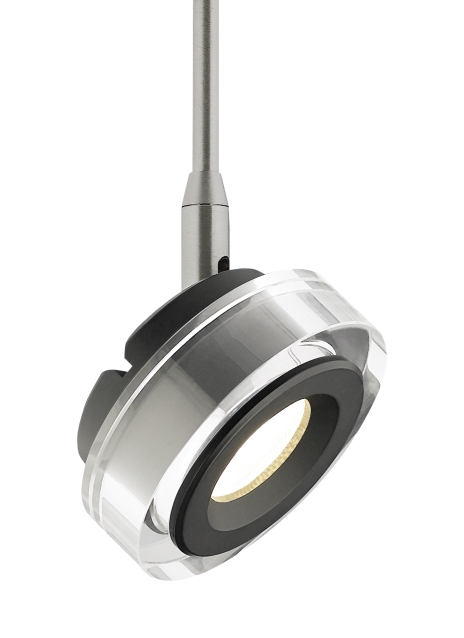

Brim Head
Product Features
- From the brand formerly known as Tech Lighting
- Field-changeable optics for ultimate customization
- Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")
- Modest size profile to minimize bulky appearance
- Compatible with the Monorail and Monopoint systems by Tech Lighting
- Available in modern finishes
Lamping
Includes 9.2 watt, 647.5 delivered lumens, 2700K or 3000K, 90 CRI field replaceable LED module Dimmable with most LED compatible ELV and Triac dimmers. Choice of 20°, 30° or 40° field changeable optics. Integrated lens holder accommodates up to 2 lenses or louvers (sold separately) As a general rule when using the Brim head, we do not recommend using greater than 70% of the maximum wattage specified for the low voltage transformer due to inrush current requirements. For assistance in calculations, please contact Technical Support. Brim head only compatible with AC transformers. Can use MOCxx Lens.
Black Finish
Black Finish
Black Finish
Satin Nickel Finish
Satin Nickel Finish
To view all available finish options, please visit techlighting.com
Ordering Information
| 700 | System BRM | Color Temp | Beam Spread | Length (A) | Color | Finish | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
Note. MP includes 4 Round Flush Canopy.
Matte Black Finish option ships with Satin Nickel Stem.
4" Stem length not available on WMO System option. For custom stem lengths, please contact the Quotes Department.
700
Job Name
Notes
BRM
Brim Head
Specifications
| Primary Material | Metal |
| Shade Material | |
| Net Weight | 0.79 lbs |
| Height | 1.3in |
| Width | 3in |
| Length | 3in |
| Beam Spread | |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | |
| Dry Listed | Yes |
| Min. Hanging Height | 4.8in |
| Max Hanging height | 13.8in |
| Total Cord Length | |
| Sloped Ceiling Adaptable? | No |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 647.5 | |||
| Watts | 9.2 | |||
| Max Wattage Per Bulb | 9.2W | |||
| Input Voltage/ Dimming Type |
12V ELV 120V ELV |
|||
| CCT |
Clear, Transparent Smoke : 2700K Clear, Transparent Smoke : 3000K |
|||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | 50000 | |||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
