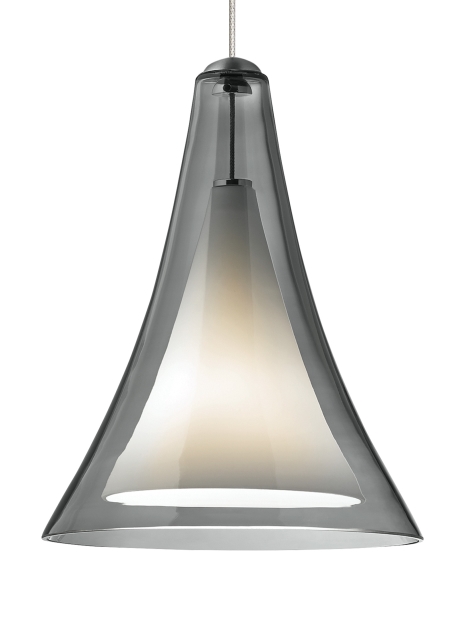

Melrose II Pendant
Product Features
- From the brand formerly known as Tech Lighting
- Graceful design and cone shaped inner diffuser
- Multiple color options as well as modern finish options available
- As each piece is artisan made, slight variations are an inherent part of this hand-blown glass fixture
- Ideal for kitchen islands, bedrooms and home offices
- Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")
Lamping
Includes with 50 watt halogen bi-pin or 6 watt, 330 delivered lumen, 3000K, replaceable Tech Lighting LED module and six feet of field-cuttable cable. Dimmable with low-voltage electronic or magnetic dimmer (based on the transformer).
Ordering Information
| 700 | System MLP | Color | Finish | Lamp | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
Note: MP includes 4" Round Flush Canopy.
Chrome not available on Monorail or Two~Circuit Monorail.
700
Job Name
Notes
MLP
Melrose II Pendant
Specifications
| Primary Material | Glass |
| Shade Material | Glass |
| Net Weight | 1 lbs |
| Height | 8.8in |
| Width | 7.3in |
| Length | 7.3in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | |
| Dry Listed | |
| Min. Hanging Height | 15.3in |
| Max Hanging height | 81.3in |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 330 | 500 | ||
| Watts | 6 | 50 | ||
| Max Wattage Per Bulb | 50W | 50W | ||
| Input Voltage/ Dimming Type |
12V ELV, MLV 120V ELV, MLV |
12V ELV, MLV 120V ELV, MLV |
||
| CCT | 3000K | 3000K | ||
| CRI | 90 CRI | 100 CRI | ||
| LED Lifetime | ||||
| L70 | >30000 | 2000 | ||
| Average Bulb Hours | 2000 | |||
| Field Serviceable LED | ||||
| Lamp Base | GY 6.35 | GY 6.35 | ||
| Lamp Shape | T4 | T4 | ||
| Lamp Included? | True | True | ||
| Warranty** | 1 Year | 1 Year |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | Yes |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
