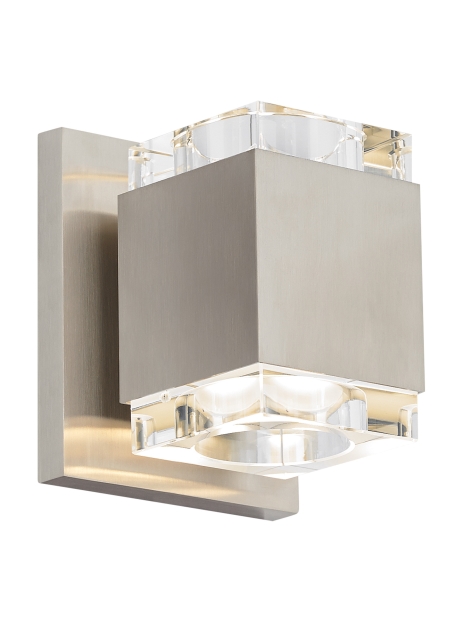

Voto Wall Square
Product Features
- From the brand formerly known as Tech Lighting
- Crafted from die-cast metal
- Cut from a solid piece of pure optic crystal
- ADA Compliant
- Can be mounted vertically as well as horizontally
- The LED Driver is housed within the junction box. (L. 3.03" | W. 1.22" | H. .83")
Lamping
Includes 12.4 watt, 424 total delivered lumen, 3000K LED module. Dimmable with low-voltage electronic dimmer. May be mounted horizontally or vertically. ADA compliant.
Ordering Information
| 700WSVOTS | Color | Finish | Lamp | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700WSVOTS
Job Name
Notes
Voto Wall Square
Specifications
| Primary Material | Aluminum |
| Shade Material | Glass |
| Net Weight | 2.5 lbs |
| Height | 5in |
| Width | 3.9in |
| Length | 4.3in |
| Min. Extension From Wall | 3.9in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Up / Down | |
| Horizontal / Vertical | |
| Wall / Ceiling Mount | |
| General Listing | ETL Listed |
| Ada Compliant | |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 424.0 | |||
| Watts | 12.4 | |||
| Max Wattage Per Bulb | 12.4W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
