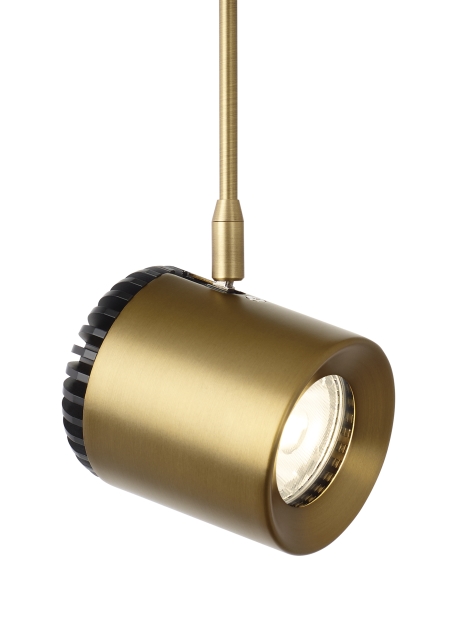

Aged Brass
Burk Head
Product Features
- From the brand formerly known as Tech Lighting
- High-tech display head that combines simplicity with practical technology
- Telephoto camera lens inspired design
- Highly customizable featuring a plethora of finishes, beam spreads, lamping and stem lengths
- Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")
- Pivots 88° and able to point straight down
Lamping
Includes field replaceable 14.2 watt, 634 delivered lumen, 2700K, 3000K or 3500K field replaceable LED module. Dimmable with most LED compatible ELV or Triac dimmers. Choice of 18° or 40° field changeable optics. Integrated lens holder accommodates up to two MR16 sized lenses or louvers (sold separately). As a general rule when using the Burk head, we do not recommend using greater than 70% of the maximum wattage specified for the low voltage transformer due to inrush current requirements. For assistance in calculations, please contact Technical Support.
Aged Brass
Antique Bronze
Satin Nickel
Satin Nickel
Satin Nickel
To view all available finish options, please visit techlighting.com
Ordering Information
| 700 | System BRK | CRI | Color Temp | Beam Spread | Length (A) | Finish | Lamp | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
Compatible with following accessories. 140MR16DF DIFFUSOR LENS MR16/PAR16 *** 140MR16LL LINEAR SPREAD LENS MR16/PAR16 *** 140MR16SB SANDBLASTED LENS MR16 *** 140MR16SF SOFT FOCUS LENS MR16/PAR16 *** 700A02-BK EGGCRATE MR16/PAR16 BLACK
700
Job Name
Notes
BRK
Burk Head
Specifications
| Primary Material | Metal |
| Shade Material | |
| Net Weight | 2 lbs |
| Height | 3in |
| Width | 3.6in |
| Length | 3in |
| Beam Spread | |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | |
| Dry Listed | |
| Min. Hanging Height | 3in |
| Max Hanging height | 3in |
| Total Cord Length | |
| Sloped Ceiling Adaptable? | N/A |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 634.0 | |||
| Watts | 14.2 | |||
| Max Wattage Per Bulb | 14.2W | |||
| Input Voltage/ Dimming Type |
12V ELV, MLV 120V ELV, MLV |
|||
| CCT |
2700K 3000K 3500K |
|||
| CRI |
80 CRI 90 CRI |
|||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | No | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
