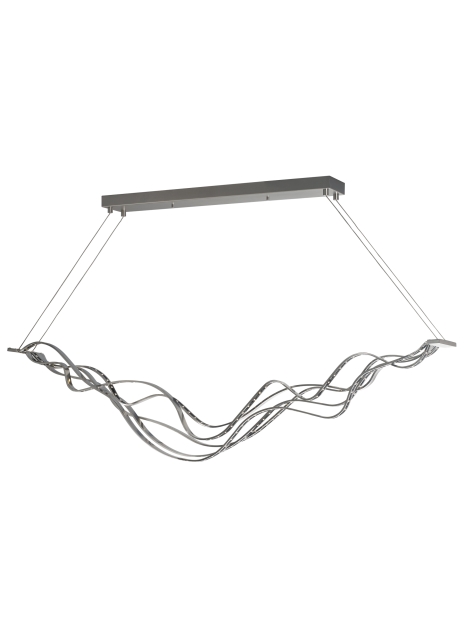

Surge Linear Suspension
Product Features
- From the brand formerly known as Tech Lighting
- Features elegant smooth wavy lines, inspired by the waves of the ocean
- Ships with an energy efficient integrated LED lamp
- Fully dimmable integrated LED lamping creates the desired ambiance
Lamping
Includes 52 watts of LED (40 watts, of downlight and 12 watts of uplight) 2694 total delivered lumens, 80 CRI 3000K. Ships with 12 ft of field-cuttable cable. 120V dimmable with most LED compatible ELV dimmers. 277V not dimmable. Can be installed on sloped ceiling 45.
Ordering Information
| 700LSSURG | Finish | Lamp | ||||||
|---|---|---|---|---|---|---|---|---|
|
|
700LSSURG
Job Name
Notes
Surge Linear Suspension
Specifications
| Primary Material | Metal |
| Shade Material | |
| Net Weight | 21 lbs |
| Height | 12in |
| Width | 5.9in |
| Length | 54in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 25.3in |
| Max Hanging height | 157.3in |
| Total Cord Length | 144in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 2694 | |||
| Watts | 52 | |||
| Max Wattage Per Bulb | 52W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V ELV, TRIAC |
|||
| CCT | 3000K | |||
| CRI | 80 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | No | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
