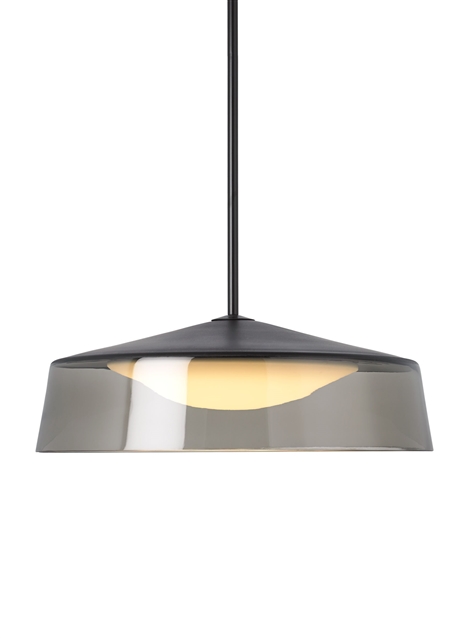

Masque Grande Pendant
Product Features
- From the brand formerly known as Tech Lighting
- Available in a modern finish combination of Smoke/Black
- Complementary Exo LED pendant light fixtures also available from Visual Comfort Modern Collection
- Performance-minded, specification grade beam spread options and tool-free aiming
- Fully dimmable LED lamping options to create the desired ambiance
- High quality, long-lasting integrated LED lamping included to save you time and money
Lamping
Includes 22 watt, 1347 delivered lumen, 90 CRI 3000K, field replaceable LED module. Fixture provided with integrated ball joint to accommodate up to 45° slope. The height of the fixture is customizable with three interchangeable threaded down rods included, (1) 6”, (1) 12” and (2) 24” in coordinating finish. Dimmable with most LED compatible ELV and TRIAC dimmers. 277V option is not dimmable.
Ordering Information
| 700 | System MSQGP | Color | Finish | Lamp | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
700
Job Name
Notes
MSQGP
Masque Grande Pendant
Specifications
| Primary Material | Glass |
| Shade Material | Glass |
| Net Weight | 13.5 lbs |
| Height | 6.1in |
| Width | 18in |
| Length | 18in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 14in |
| Max Hanging height | 74in |
| Total Cord Length | |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 1347 | |||
| Watts | 22 | |||
| Max Wattage Per Bulb | 22W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 120V 0-10V |
|||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | No | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
