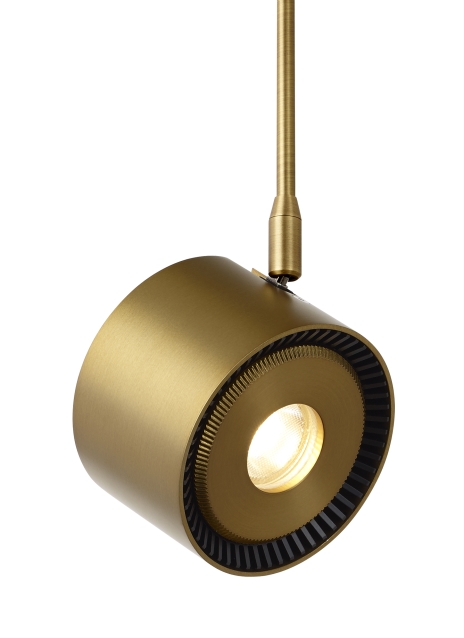

ISO Head
Product Features
- From the brand formerly known as Tech Lighting
- Sleek and contemporary design combined with lighting precision
- Wide range of beam spreads, 20°, 30° or 50°
- Complementray Monorail or Monopoint systems by Tech Lighting
- Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")
- Ideal for commercial and residential lighting applications
Lamping
Includes 16 watt, 704.1 delivered lumens, 3000K, 90 CRI field replaceable LED module. Dimmable to 10% dimmer type determined by low-voltage transformer. The head rotates 360° and pivots 90° to direct the beam. As a general rule when using the ISO Head, we do not recommend using greater than 70% of the maximum wattage specified for the low-voltage transformer due to the inrush current requirements. For assistance in calculations, please contact our Technical Support Department.
Ordering Information
| 700 | System ISO | CRI | Color Temp | Beam Spread | Length (A) | Finish | Lamp | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
2700K not available with 90 CRI
MP includes 4" Round Flush Canopy.
Due to weight capacity issues, do not exceed a 45 degree angle. For custom stem lengths, please contact the Quotes Department.
700
Job Name
Notes
ISO
ISO Head
Specifications
| Primary Material | Metal |
| Shade Material | |
| Net Weight | 1.58 lbs |
| Height | 3.6in |
| Width | 2.8in |
| Length | 3.6in |
| Beam Spread | |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | |
| Dry Listed | |
| Min. Hanging Height | 3in |
| Max Hanging height | 3in |
| Total Cord Length | |
| Sloped Ceiling Adaptable? | No |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 704.1 | 704.1 | ||
| Watts | 16 | 16 | ||
| Max Wattage Per Bulb | 16W | 16W | ||
| Input Voltage/ Dimming Type |
12V ELV 120V ELV |
12V ELV 120V ELV |
||
| CCT |
2700K 3000K |
2700K 3000K |
||
| CRI |
80 CRI 90 CRI |
80 CRI 90 CRI |
||
| LED Lifetime | ||||
| L70 | 50000 | 50000 | ||
| Average Bulb Hours | 50000 | 50000 | ||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | Integrated LED | ||
| Lamp Shape | Integrated LED | Integrated LED | ||
| Lamp Included? | True | True | ||
| Warranty** | 5 Years | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
