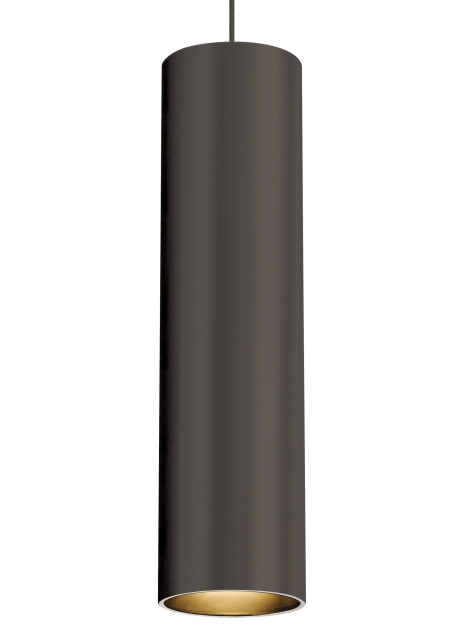

Piper Pendant
Product Features
- From the brand formerly known as Tech Lighting
- Cylindrical shape with a simple and sleek design
- Available in modern on-trend finishes
- Ideal for kitchen island task lighting, hallway lighting and commercial lighting applications
- Available lamping options include energy efficient LED or no-lamp, leaving you the option to light this fixture with your preferred lamping
- Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")
Lamping
Rated for (1) Low-Voltage, 50 watt max, bi-pin lamp/Dimmable with low-voltage electronic or magnetic dimmer (based on transformer)(Lamp Not Included) LED includes 12 volt 6.5 watt 485 delivered lumens, 3000K, replaceable Tech Lighting LED module and six feet of field-cuttable cable. Dimmable with low-voltage electronic or magnetic dimmer (based on transformer).
To view all available finish options, please visit techlighting.com
Ordering Information
| 700 | System PPR | Finish | Lamp | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
Note: MP includes 4" Round Flush Canopy.
700
Job Name
Notes
PPR
Piper Pendant
Specifications
| Primary Material | Metal |
| Shade Material | |
| Net Weight | 2.5 lbs |
| Height | 10in |
| Width | 2.5in |
| Length | 2.5in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | |
| Dry Listed | |
| Min. Hanging Height | 16.5in |
| Max Hanging height | 82.5in |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 485 | |||
| Watts | 6.5 | |||
| Max Wattage Per Bulb | 50W | 50W | ||
| Input Voltage/ Dimming Type |
12V ELV, MLV 120V ELV, MLV |
12V ELV, MLV 120V ELV, MLV |
||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >25000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | GU5.3 | GU5.3 | ||
| Lamp Shape | MR16 | MR16 | ||
| Lamp Included? | True | False | ||
| Warranty** | 1 Year | 1 Year |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | Yes | |
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | Yes | Yes |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
