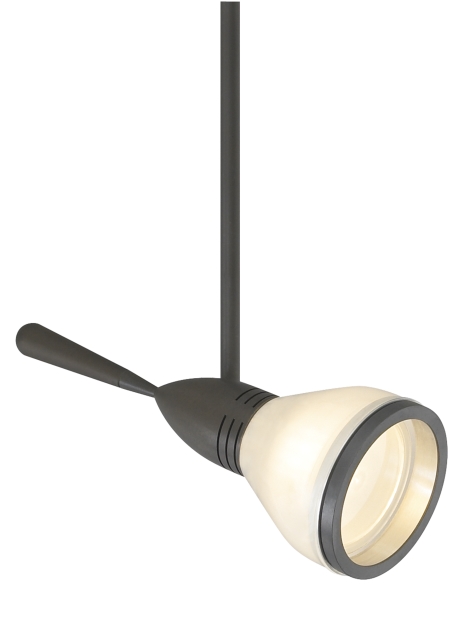

Aero Head
Product Features
- From the brand formerly known as Tech Lighting
- High-tech display head that combines simplicity with practical technology
- Puts light where you need with a 360° head rotation and and 260° pivot
- Removable handle extention serves as a functional additation assisting with pivots and rotations
- Ideal for commercial and residential lighting applications
- Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")
Lamping
Lamp not Included. Rated for 50 watt max. halogen MR16 lamp see pg. 591 of the Tech FL catalog for LED MR16 lamping options. Lamp shade accessory required. Dimmable with Low-Voltage electronic or magnetic dimmer (based on transformer).
Ordering Information
| 700 | System AE | Length (A) | Finish | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
Note. MP includes 4" Round Flush Canopy.
Fixture must be ordered with and Accessory. For custom stem lengths, please contact the Quotes Department.
700
Job Name
Notes
AE
Aero Head
Specifications
| Primary Material | Metal |
| Shade Material | |
| Net Weight | 0.55 lbs |
| Height | 12in |
| Width | 1.1in |
| Length | 4in |
| Beam Spread | |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | |
| Dry Listed | Yes |
| Min. Hanging Height | 12in |
| Max Hanging height | 12in |
| Total Cord Length | |
| Sloped Ceiling Adaptable? | No |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | ||||
| Watts | ||||
| Max Wattage Per Bulb | 50W | |||
| Input Voltage/ Dimming Type |
12V ELV 120V ELV |
|||
| CCT | ||||
| CRI | ||||
| LED Lifetime | ||||
| L70 | ||||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | GU5.3 | |||
| Lamp Shape | MR16 | |||
| Lamp Included? | ||||
| Warranty** | 1 Year |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | N/A | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
